VacMax™
The New Standard In Paste Mixing Technology
VacMax™, Eagle’s innovative Vacuum Paste Mixer, redefines what’s possible in paste production, delivering faster cycles, tighter control, greater consistency, and a dramatically smaller installation footprint. Built on industry‑proven vacuum mixing principles and engineered for the next generation of manufacturing, Eagle sets a new benchmark for performance and reliability.
JEFF TROXEL DISCUSSES VACMAX™ INNOVATIONS
AGGRESSIVE PLOW & MOTION DESIGN
Key Innovations & Advantages
- Re-Engineered Mixing Performance
Re-Engineered Mixing Performance
- Deep vacuum mixing ensures exceptional temperature stability and uniform paste quality.
- Aggressive plow and motion design drives stronger, more thorough integration of materials.
- Variable‑speed mixing allows each process step to be precisely optimized.
- Advanced Temperature & Process Control
Advanced Temperature & Process Control
- Enhanced temperature measurement reduces cycle time and improves control.
- Wireless, flexible probe technology (in development) unlocks even more accuracy.
- Intelligent safeguards prevent overheating and process drift.
Superior Additive & Material Management
- Adaptive Additive Control
Adaptive Additive Control
- Measures the actual oxide delivered by tracking hopper weight change.
- Automatically recalculates water and acid requirements to maintain perfect ratios.
- Reduces variation and improves mix quality from batch to batch.
- Optimized Water & Acid Distribution
Optimized Water & Acid Distribution
- Four proportional‑valve injection points regulate additions with precision.
- Proprietary nozzle design ensures even spray patterns and prevents clogging.
- Additions are temperature‑regulated to maintain ideal processing limits.
Engineered for Performance & Longevity
- Robust Industrial Design
Robust Industrial Design
- Internal gearbox adapted from concrete‑mixing technology for maximum durability.
- High‑efficiency condenser positioned for easy maintenance.
- Fully enclosed system supports deep vacuum levels and stronger thermal control.
- Innovative Discharge Door System
Innovative Discharge Door System
- Two‑axis servo‑controlled bottom door ensures rapid, complete unloading.
- Door lowers and swings outward, allowing paste to drop directly into the cone — cleanly and efficiently.
- Scraper system maintains door cleanliness; pneumatic seals maintain airtight vacuum integrity.
Start Up & Operational Savings
- Reduced Installation & Operating Costs
Reduced Installation & Operating Costs
Vacuum cooled mixer designed to fit in same space as a traditional mixer.
- 72-inch mixing bowl delivers more paste volume per batch than traditional mixers.
- Totally closed mixer system helps to reduce plant lead emissions.
- Integrated High-Pressure Cleaning System
Integrated High-Pressure Cleaning System
- Five high‑pressure nozzles automate cleaning at the start of each cycle.
- Measured water charge ensures consistent wash performance.
- Weekly deep-clean supported by plant‑water bypass and side‑access door.

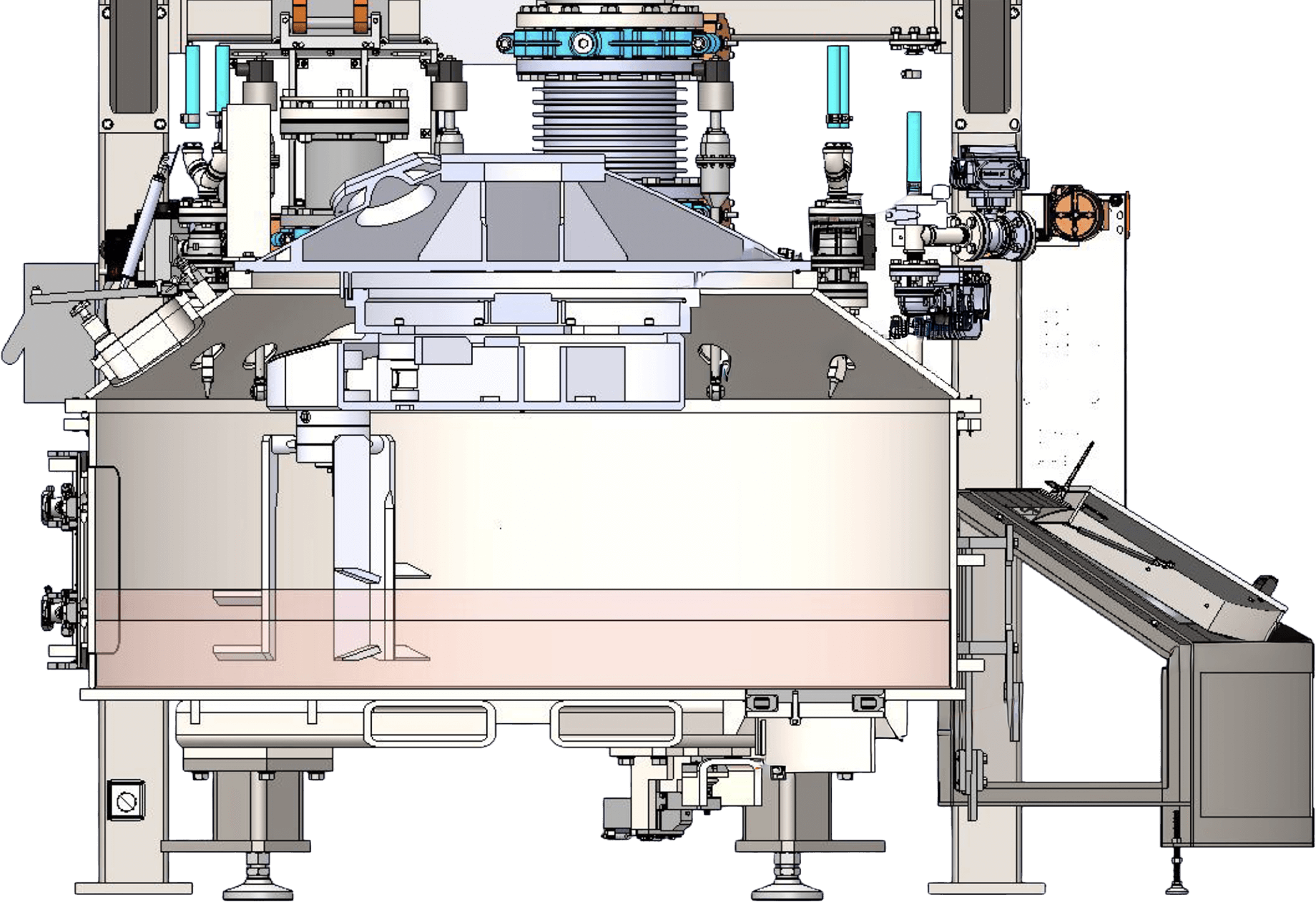

VacMax™ Section View
THE EAGLE ADVANTAGE
Support from the Global Experts in Oxide Manufacturing & Handling Equipment
Superior Control Systems –
One-Button Start-Up & Shutdown
Designed to Protect the Operators & Environment
Quality Materials & Construction for Years of No-Hassle Service
