Barton Reactor Oxide Systems
Battery performance is dependent upon the quality of lead oxide used. Eagle’s Barton Reactor Oxide Systems are designed to produce high-quality battery oxide for a wide range of battery types.
Eagle’s knowledge of lead oxides, equipment design and build makes us a leading expert to assist customers in selecting the best system for the battery type to be produced. This knowledge along with a dedicated team of support staff will carry on the Eagle tradition of superior assistance after installation and start-up to ensure your operation meets all requirements.
Three Systems to Choose from Depending on Production Requirements
EOS 500
350 to 450 Kg/Hr
700 to 900 lbs/Hr (10-Ton/Day)
EOS 1000
750 to 950 Kg/Hr
1600 to 2000 lbs/Hr (24-Ton/Day)
EOS 1200
1000 to 1200 Kg/Hr
2200 to 2600 lbs/Hr (30-Ton/Day)
Automatically Control Oxide Specifications Range

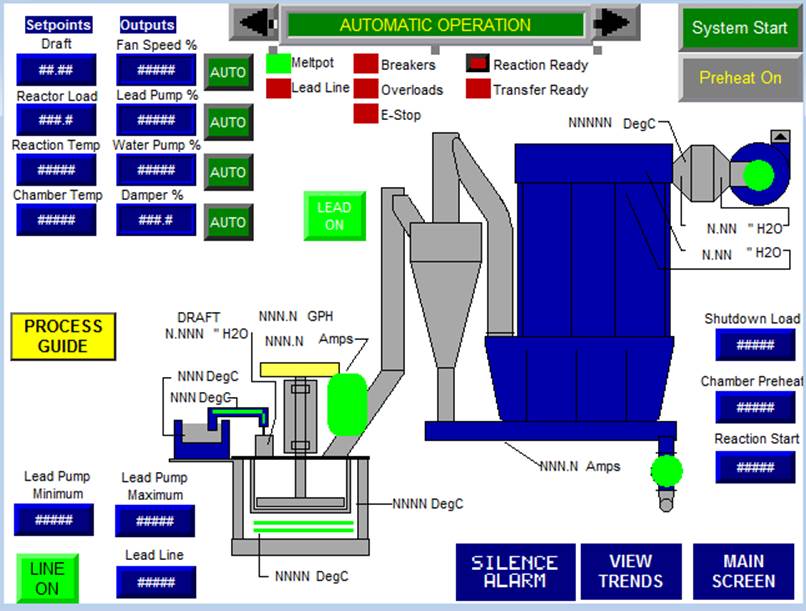

Our mechanical and electrical control systems automatically control and maintain critical operating conditions to ensure oxide quality meets specifications. With Eagle’s unique temperature monitoring and PLC control algorithms; our systems easily allow operators to produce a selected ratio of tetragonal PbO crystal structures, ranging from 68% to 82% with very little variability.
Oxide Specification
Tetragonal Crystal of Pb0
Total Free Lead
Apparent Density
Acid Absorption
Particle Size
Range
68 to82%
18 to 32%
1.2 to 1.8 g/cm3
160 to 210 mg/g
3.5 to 4.5 micron
Key System Component Energy & Water Consumption Under Normal Operation
Cost of operation is always a consideration in any equipment purchase and Eagle’s Barton Reactor Oxide Systems are the most efficient in the industry. Environmental conditions and ease of use for the operator are demanding elements in any processing equipment. Eagle understands these requirements and has developed a control system that provides operators with single Start-Up and Shut-Down buttons for the entire system. The control also monitors multiple sensors and will automatically shut down the system and alert the operator of any critical issue.
The following chart indicates energy consumption of key components of the system and overall average per hour during normal operation. (*The kW numbers are based on 460V service; values at other voltages should be calculated.)
Utility Use Device
Lead Melt Pot
Reactor Pre-Heat
Electric Motors in System
Water Feed System
Avg. Consumption/Hr*
EOS 500
30 kW
33 kW
45 kW
50 liters/hr max.
45 kW
EOS 1000
60 kW
63 kW
55 kW
75 liters/hr max.
90 kW
EOS 1200
75 kW
75 kW
65 kW
100 liters/hr max.
110 kW
Utility Use
Device
Lead Melt
Pot
Reactor
Pre-Heat
Electric
Motors
Water Feed System
Avg. Consumption
/Hr*
EOS
500
30 kW
33 kW
45 kW
50 liters/
hr max.
45 kW
EOS
1000
60 kW
63 kW
55 kW
75 liters/
hr max.
90 kW
EOS
1200
75 kW
75 kW
65 kW
100 liters/
hr max.
110 kW
THE EAGLE ADVANTAGE
Support from the Global Experts in Oxide Manufacturing & Handling Equipment
Superior Control Systems –
One-Button Start-Up & Shutdown
Designed to Protect the Operators & Environment
Quality Materials & Construction for Years of No-Hassle Service
